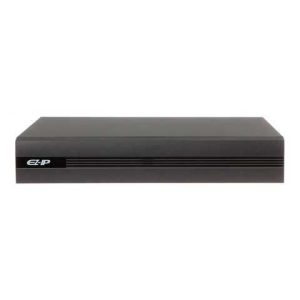

9 Channel / 4 Channel x PoE 8MP Network Video Recorder
9 Channel / 4 Channel x PoE 8MP Network Video Recorder

9 Channel / 4 Channel x PoE 8MP Network Video Recorder

$389.95

Our 9ch 4K NVR with 4 x PoE & P2P Remote View is a great and easy to configure NVR compatible with HikVision Dahua and Onvif cameras.

SKU - DEAL4CHNVR

Description

This multi-channel network video recorder offers 8MP (4K) resolution recording at 25fps per camera. It utilises H.264/H.265+ compression to maximise your hard disk space and has wide camera compatibility with ONVIF S/T support. Recording can be manually set, scheduled or triggered by motion detection. Supports one internal hard disk, maximum storage 8TB. Hard drives sold separately.

Download the platform software guide suitable for windows and mac

Features

  • H.264+/265+ compression
  • 4K HDMI monitor output
  • Recording up to 8MP @ 25fps per ch
  • Supports iOS and Android remote viewing
  • 4 x 15.4W PoE network interfaces
  • Internal SATA interface, max 8TB
  • USB backup
  • Dedicated network interface
  • Audio input & output
  • ONVIF S/T support

Specifications

  • System
  • Main Processor: ARM Cortex A7 Processor
  • Operating System: Embedded LINUX
  • Video
  • Input: 9CH(3840*2160,2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc)
  • Output: 1 VGA, 1 HD
  • Audio
  • Input: 1 Port RCA
  • output: 1Port RCA (Linear, 1kΩ)
  • Audio Bit Rate: 64kbps
  • Audio Compression standard: G711u, G711a, ADPCM_DVI4
  • intercom: Support (two-way)
  • Alarm
  • Sensor Input: 4
  • Output: 1
  • Motion Detection: 9 Channel, MD Zones: 396 (22 × 18)
  • Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
  • Display
  • HD Output1: 1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz，1920×1080/60Hz，4K(3840×2160)/30Hz
  • HD Output2: N/A
  • VGA: Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Display Split: 9CH/8CH/6CH/4CH/1CH
  • Digital Zoom: YES
  • OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm
  • Recording
  • Video Compression: H265/H264/H265+/H264+
  • Resolution: 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (720×576/720×480)
  • Record Rate:
  • PAL :4K@8CHx25fps,5MP@9CH×25fp,4MP@9CHx25fp,3MP@9CH×25fp,1080P@9CH×25fp, 960P@9CH×25fp,720P@9CH×25fp, D1@9CH×25fp NTSC: 4K@8CHx30fps,5MP@9CH×30fp,4MP@9CH×30fp,3MP@9CH×30fp,1080P@9CH×30fp, 960P@9CH×30fp, 720P@9CH×30fp, D1@9CH×30fp
  • Record Mode: ManualTimerMotion Detection AlarmSmart Event
  • Playback & Backup
  • Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps
  • Decode Capability: 4CH 1080P(1920×1080)@30fps
  • Remote Sync Playback: Yes
  • Search Mode: ALL, Timing Video, Motion Detection, Alarm,Tag search,Smart Event,Pictrue,Log
  • Playback Functions: Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio
  • Backup Mode: USB Device/Network
  • Network
  • interface: 1xRJ45 10M/100M Adaptive Ethernet Interface
  • Incoming Bandwidth: 80MB
  • Network Functions: IPv6/TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
  • Onvif: onvif S,onvif T
  • Web Browser: Edge,IE8-11, Google Chrome, Firefox, Safari
  • CMS Software: Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
  • Cloud Support: Yes
  • Smart phone: iPhone, iPad, Android, Android Pad
  • POE: 4 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output%E2%89%A4 50W, Support Plug and Play, Support network cable extended mode Max. 200M
  • Wifi: N/A
  • Storage
  • Interface Type: 1 SATA Hard Disk Interface (3.5″ SATA)
  • Capacity: Up to 8TB capacity
  • eSATA: N/A
  • General
  • Language UI: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Janpanese
  • USB Interface: 2 USB 2.0 Interfaces
  • RS485: N/A
  • Power consumption: DC52V∕1250mA ≤20W (Without Hard Disk and POE)
  • Working Environment: -10~55°C/10~90%
  • Dimension(W×D×H): 260*215*43(mm)
  • Weight: 2kg(without HDD)
